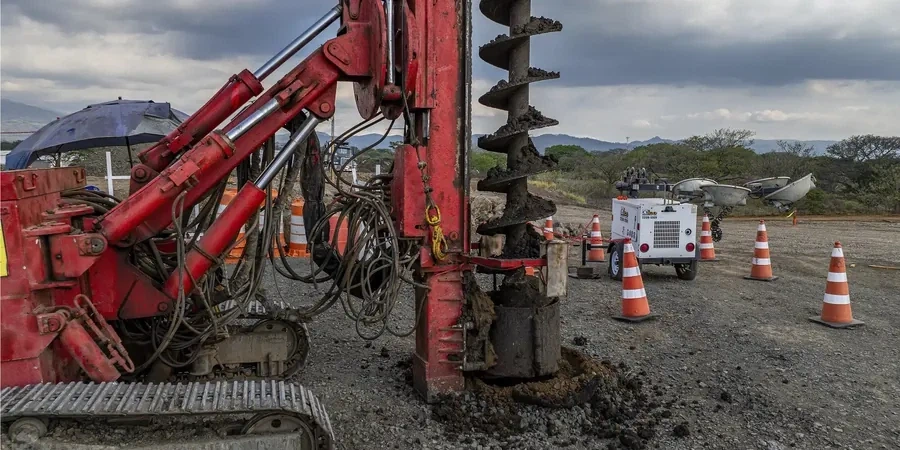

Savannah sits barely 15 meters above sea level, and that low elevation tells you everything about the soil conditions. The coastal plain deposits here — loose sands, soft clays, and organic silts — create serious bearing capacity problems for any structure heavier than a single-story frame. We deal with this reality every week: conventional shallow footings fail the settlement criteria, and deep foundations blow the budget. Stone column design offers a middle path that works. By installing compacted gravel columns through the weak strata, we transfer loads to a composite ground mass with improved stiffness and drainage. For projects near the Savannah River or out toward Pooler, where the water table sits barely 1.5 meters down, the drainage function alone prevents pore pressure buildup that would otherwise trigger long-term settlement. We combine the stone column approach with in-situ permeability data to confirm that radial drainage is actually working as designed — without it, you are guessing on consolidation rates.
A well-designed stone column grid cuts consolidation time from years to weeks while doubling the bearing capacity of Savannah’s coastal soils.
Method and coverage
Regional considerations
The most expensive mistake we see in Savannah? Contractors treating stone columns as a generic commodity — same diameter, same spacing, same depth — regardless of the subsurface variability. The coastal plain does not work that way. A grid optimized for the stiff clays under Historic District buildings will underperform by 40% or more when applied to the compressible organic silts near the Vernon River. We have pulled CPT logs on adjacent lots, 30 meters apart, showing 5 meters of difference in the depth to competent bearing stratum. That variance demands column lengths adjusted lot-by-lot, not copied from a previous job. Another frequent error: specifying the wrong aggregate gradation. Fines content above 5% clogs the column and kills its drainage function. We specify ASTM D448 No. 57 stone with strict wash requirements and verify it at the batch plant before the first load leaves the yard. When the water table is high — and it usually is — wet top-feed installation with a vibrating probe is the only method that reliably achieves the required compaction without collapsing the borehole.
Process video
Standards that apply
FHWA-NHI-06-086 (Ground Improvement Methods), ASTM D1586 (SPT for site characterization), ASTM D2487 (Unified Soil Classification), ASTM D448 (Aggregate gradation), Priebe method (Baez 1995 modification for settlement)
Complementary services
Stone column design package
Full engineering calculations per Priebe method with CPT/SPT correlation. Includes column layout drawings, aggregate specification, installation sequence, and construction QC/QA plan. Delivered stamped by a Georgia-licensed professional engineer.
Post-installation verification testing
CPT soundings between columns to confirm improvement factor, plate load tests up to 250 kPa reaction capacity, and settlement monitoring during the consolidation period. We compare measured vs. predicted settlement and issue the acceptance report.
Typical parameters
Q&A
How much does stone column design cost for a typical Savannah commercial site?
For most commercial lots in the Savannah area — warehouse pads, retail buildings, or low-rise office structures — the design package runs between US$1,600 and US$4,680 depending on the number of borings, the complexity of the soil profile, and whether post-installation verification testing is included. A straightforward single-building site with two borings and a uniform soil profile falls at the lower end. A multi-structure development with variable stratigraphy and lateral spreading concerns near the river will push toward the upper end.
How do stone columns compare to deep foundations for Savannah coastal soils?
Stone columns improve the ground mass rather than bypass it, which makes them cost-effective when the weak zone is less than 15 to 18 meters deep — a common condition in the Savannah coastal plain. They provide drainage that driven piles do not, reducing post-construction settlement. However, if the compressible layer exceeds 20 meters or the structural loads require point bearing on rock, deep foundations become the better choice. We evaluate both options during the feasibility phase using CPT data and load estimates.
What soil types in Savannah are suitable for stone column ground improvement?
Stone columns perform best in soft to medium clays with undrained shear strength above 15 kPa, loose silty sands, and mixed alluvial deposits — exactly the profile found across much of Savannah and Chatham County. They are less effective in peat, organic soils with loss-on-ignition above 15%, or very soft clays below 10 kPa where lateral confinement is insufficient. We run Atterberg limits and organic content tests on every sample before committing to the design.
How long does the stone column design and installation process take?
The design phase typically takes 10 to 15 business days from receipt of the final geotechnical report. Field installation for a typical 1,500-square-meter site runs 5 to 8 working days with one rig. Post-installation verification — CPT testing and plate load tests — adds another 2 to 3 days. Consolidation monitoring may extend for 4 to 8 weeks depending on the drainage path length and the client’s schedule tolerance.
