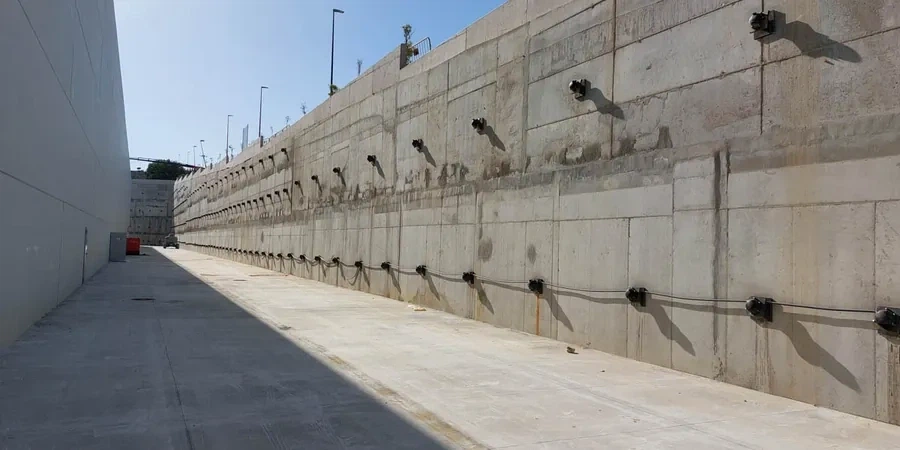

A contractor called us halfway through a 28-foot excavation on Bay Street. The sheet pile wall was creeping inward, and water was seeping through the interlocks faster than the sumps could handle. The original design had assumed passive resistance from a dense sand layer that, as it turned out, was five feet deeper than the borings showed. We redesigned the lower row of tiebacks as active anchors extending into the Cooper Marl, preloaded each tendon to 80% of design load, and installed the passive zone drainage within four days. Savannah's subsurface doesn't read the textbook. The alternating layers of Pleistocene sand, soft clay, and calcareous silt near the coast demand anchor designs that account for both short-term construction conditions and the long-term creep behavior of the soil. For projects near the river or the historic district, combining an anchor system with a retaining walls analysis ensures the facing and the ground behind it work as a single unit, not as two independent problems.
An anchor is only as reliable as the soil that holds it. In Savannah, that means designing for water before designing for steel.
Method and coverage
Regional considerations
The expansion of Savannah's port and logistics corridors over the last two decades has pushed heavy structures onto land that was tidal marsh less than a century ago. The fill placed in those areas is rarely engineered. We've pulled soil samples from sites along the Savannah River where the upper 12 feet were loose silty sand mixed with oyster shell fragments and decayed organic matter. An anchor installed in that material without a thorough site investigation is a liability. The risk isn't just low capacity; it's differential settlement between anchored walls and adjacent foundations, progressive corrosion in acidic marsh soils, and long-term relaxation in clays that creep under sustained load. For structures classified as Risk Category III or IV under ASCE 7, we require a site-specific geotechnical investigation that includes at least one deep boring per anchored wall line, laboratory consolidation tests on any cohesive stratum within the bond zone, and a corrosion potential assessment. The incremental cost of that investigation is trivial compared to the cost of replacing a failed anchor system three years after the building is occupied.
Standards that apply
IBC 2021 (Chapter 18: Soils and Foundations; Chapter 16: Structural Design), ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), PTI DC-35.1-14 (Recommendations for Prestressed Rock and Soil Anchors), ASTM A416/A416M-18 (Standard Specification for Low-Relaxation, Seven-Wire Steel Strand for Prestressed Concrete), FHWA-NHI-10-016 (Mechanically Stabilized Earth Walls and Reinforced Soil Slopes)
Complementary services
Geotechnical Investigation for Anchor Design
Deep borings with SPT sampling and classification per ASTM D2487 to identify the bond zone stratum, measure groundwater levels, and collect undisturbed samples for laboratory shear strength testing.
Active Tieback Anchor Design
Computational analysis of free length, bond length, and tendon size for soldier pile walls, sheet pile walls, and diaphragm walls. Includes lock-off load calculations and staged excavation modeling.
Passive Anchor and Deadman Systems
Design of passive ground anchors, concrete deadmen, and helical anchors for retaining walls where space constraints or adjacent structures limit the use of tiebacks extending beyond the property line.
Anchor Load Testing and Verification
Performance tests, proof tests, and extended creep tests following PTI standards. We provide on-site supervision, data interpretation, and acceptance criteria tailored to Savannah's soil conditions.
Typical parameters
Q&A
What is the difference between an active and a passive anchor?
An active anchor is tensioned after installation to apply a precompressive force to the structure it supports, typically between 70% and 80% of its design load. This minimizes wall deflection during subsequent excavation stages. A passive anchor is not tensioned; it only develops resistance as the wall moves outward and mobilizes the soil's shear strength. In Savannah's soft clays, we lean toward active systems because passive anchors require more wall movement to engage, and that movement can damage adjacent utilities or historic structures.
How much does an anchor design and testing package cost in Savannah?
For a typical commercial excavation project in the Savannah area, the complete anchor design package including site investigation review, computational analysis, construction specifications, and on-site load testing supervision generally falls between US$1,190 and US$3,380. The range depends on the number of anchored wall lines, the complexity of the soil profile, and whether a corrosion protection system is required.
How deep should anchor bond zones be in Savannah's coastal soils?
The bond zone must extend into a competent stratum below any soft or organic layers. In much of Savannah, that means penetrating the Pleistocene sands or the Hawthorn Formation at depths between 30 and 55 feet. We determine the exact depth through site-specific borings and CPT soundings. The bond length itself is calculated based on the soil-grout interface strength verified by on-site testing, never assumed from generic tables.
Do anchors in Savannah require corrosion protection?
Yes. Savannah's high groundwater table and the acidic nature of marsh-influenced soils create an aggressive environment for steel. For permanent anchors, we specify Class I corrosion protection per PTI DC-35, which involves double encapsulation of the tendon with corrugated sheathing and factory-applied epoxy coating on the strand. For temporary anchors with a service life under 24 months, Class II protection may be acceptable, but we always recommend a soil resistivity test before making that decision.
