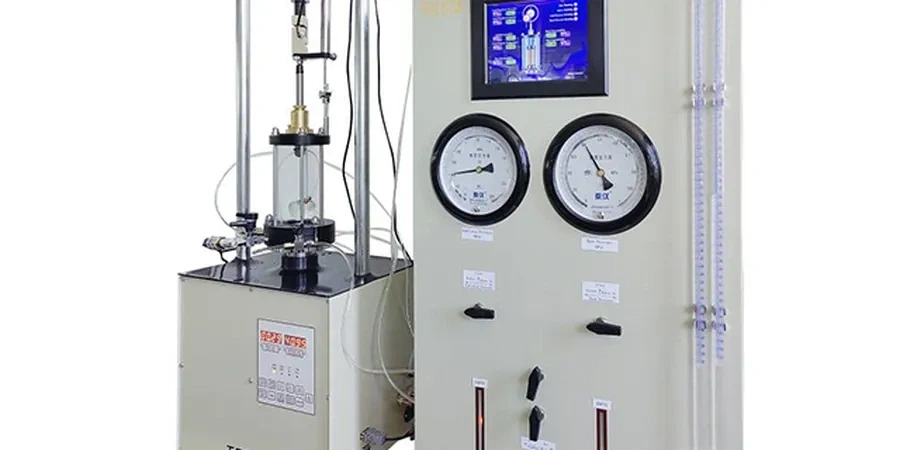

Savannah’s subsurface carries the memory of the Pleistocene coastline, where marine terraces and alluvial fills create distinct geomechanical units that shift within a few city blocks. The 2021 expansion of the Georgia Ports Authority terminal, which moved over 5.5 million TEUs, required triaxial testing programs to establish drained friction angles for the dense sands underlying the new berths. A triaxial test provides the effective stress parameters that standard penetration testing cannot deliver, measuring cohesion and internal friction under controlled confining pressures. For projects on the silty clays of the Savannah Formation or the loose sands of the Wicomico terrace, we combine consolidated-undrained (CU) and drained (CD) protocols to capture the stress-strain behavior that governs foundation performance. The resulting Mohr–Coulomb failure envelopes feed directly into bearing capacity calculations and excavation support design, replacing conservative assumptions with site-specific strength curves.
Effective stress parameters from a triaxial test turn a generic safety factor into a defensible design value that accounts for Savannah’s layered Pleistocene stratigraphy.
Method and coverage
Regional considerations
The most frequent error we see in Savannah geotechnical reports is the reliance on total stress parameters from unconfined compression tests for long-term slope stability analysis. The low plasticity clays of the Savannah River floodplain lose significant undrained shear strength when pore pressures equalize after construction, a condition that unconfined testing cannot replicate. A drained triaxial test with pore pressure measurement reveals the effective friction angle that governs long-term stability, which is often 2 to 4 degrees lower than the total stress interpretation suggests. For excavations deeper than 15 feet near the river, where tidal fluctuation drives daily pore pressure cycles, specifying CU triaxial tests with pore pressure measurement is the only way to model the short-term construction condition and the long-term equilibrium condition in a single test program.
Standards that apply
ASTM D4767 – Consolidated Undrained Triaxial Compression Test for Cohesive Soils, ASTM D2850 – Unconsolidated Undrained Triaxial Compression Test on Cohesive Soils, ASTM D7181 – Consolidated Drained Triaxial Compression Test for Soils
Complementary services
CU Triaxial with Pore Pressure Measurement
Consolidated-undrained testing per ASTM D4767 for soft to stiff Savannah clays. Three effective confining pressures produce a Mohr–Coulomb envelope with c′ and φ′. Includes B-check saturation verification and post-shear water content profiling.
Drained Triaxial for Granular Soils
CD testing per ASTM D7181 on reconstituted or intact sand specimens from Savannah’s Pleistocene terraces. Slow shear rate ensures drained conditions; volume change measurement yields dilatancy angle for advanced constitutive models.
Typical parameters
Q&A
When does a Savannah project need CU instead of UU triaxial testing?
Consolidated-undrained (CU) testing per ASTM D4767 is required when effective stress parameters are needed for long-term stability analysis, such as cut slopes along I-16 or deep excavations in the Hawthorne Group clays. Unconsolidated-undrained (UU) per ASTM D2850 gives total stress parameters suitable only for short-term end-of-construction conditions on rapid loading cases.
How many specimens are needed for a complete triaxial test program?
A full Mohr–Coulomb envelope requires three specimens sheared at different confining pressures, typically 5, 10, and 20 psi for Savannah projects. We also recommend one additional specimen as a backup in case of sample disturbance during extrusion.
What sample quality is needed for triaxial testing on Savannah clays?
Undisturbed Shelby tube samples with a recovery ratio above 90 percent and an area ratio below 10 percent. Samples should be wax-sealed immediately in the field and transported upright. We process specimens within 24 hours of extraction to minimize moisture loss in Savannah’s summer humidity.
Can triaxial testing be performed on sands from Savannah’s upper coastal plain?
Yes, reconstituted specimens are prepared to the field density measured by sand cone or nuclear gauge. Drained triaxial tests on these sands capture the dilative peak friction angle, which is essential for foundation design on the Wicomico and Penholoway terraces west of the city.
What does a triaxial test program cost for a typical Savannah commercial project?
A complete three-stage CU triaxial suite with pore pressure measurement ranges from $2,150 to $2,330, depending on specimen preparation time and whether drained tests on sand layers are included. The investment typically reduces foundation over-design costs by clarifying actual strength parameters. More info.
