In Savannah, the biggest variable under a shallow foundation isn't the structural load—it's the moisture regime in the upper ten feet. The city sits on Pleistocene-age barrier island sequences: loose quartz sands interbedded with stiff, overconsolidated clays. We run into fat clays with PI values above 40 near the Ogeechee River floodplain, while the sand ridges east of I-95 drain fast but can densify unevenly under cyclic loading. A test pits program gives us direct observation of these transitions, and when we need continuous penetration data without sample disturbance, the CPT test maps pore pressure dissipation rates that govern settlement rate. Every footing design we deliver accounts for the seasonal water table swing—shallow in winter, perched in summer after tropical storms.
In Savannah's coastal plain, bearing capacity isn't a single number—it's a function of seasonal saturation and the clay content of the upper sand sheet.
Method and coverage
Regional considerations
The USGS Quaternary mapping for the Savannah quadrangle shows a buried paleochannel system running roughly parallel to the current Savannah River alignment. These channels are filled with soft organic silts and loose sands—material that consolidates under as little as 50 kPa of additional stress. A footing placed straddling the edge of one of these features sees differential settlement within the first year of service. The second risk is scour: any shallow foundation within the 100-year floodplain mapped by FEMA for Chatham County must have its bearing elevation set below the computed scour depth, or the designer accepts a reduced resistance factor for flood events. We verify organic content by loss-on-ignition on every split spoon sample retrieved from the upper 4.5 meters; values above 5 percent trigger a recommendation to either over-excavate or switch to a deep foundation system.
Standards that apply
IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 Chapter 12 – Seismic Design (Site Classification), ASTM D2487-17e1 – Unified Soil Classification System, ASTM D1586-18 – Standard Penetration Test (SPT), ASTM D2435/D2435M-11(2020) – One-Dimensional Consolidation
Complementary services
Bearing Capacity and Settlement Analysis
Net allowable bearing pressure determination using Vesic and Terzaghi methods, checked against SPT N60 correlations. One-dimensional consolidation settlement computed for the clay sublayer, with time-rate estimates for projects on accelerated schedules.

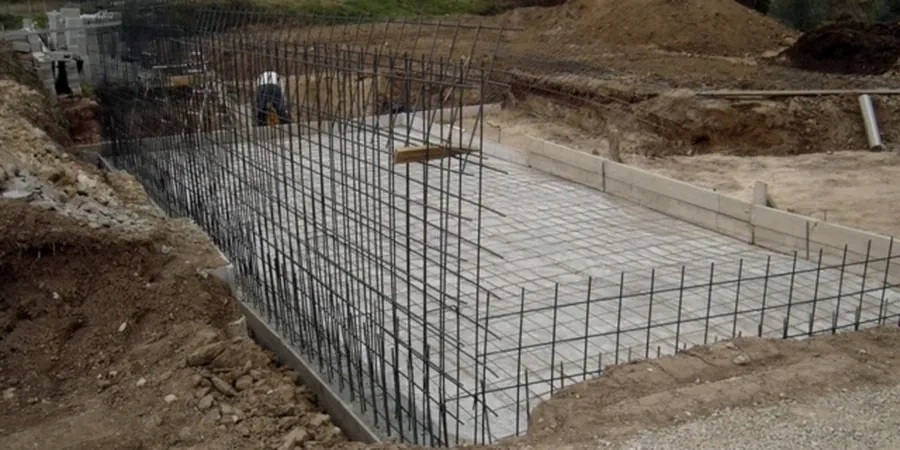

Spread Footing and Mat Foundation Sizing
Footing geometry optimization for column loads up to 2,000 kip. Mat foundation thickness and reinforcement recommendations based on modulus of subgrade reaction derived from plate load tests or CPT correlations.
Subgrade Improvement Verification
Density testing, proof rolling observation, and plate bearing tests on compacted fill pads. Documentation for the building official per Section 1705.6 of the IBC, including moisture conditioning protocols for Savannah's clayey sands.
Typical parameters
Q&A
What is the typical bearing pressure allowed for footings in Savannah?
Most sites with medium-dense sands yield allowable pressures between 1,500 and 2,500 psf after applying the factor of safety. Sites underlain by stiff clay near the Fall Line can reach 3,500 psf. The exact value depends on SPT blow counts and consolidation test results from the specific lot.
Do shallow foundations in Chatham County require a geotechnical report for permit?
Yes. The City of Savannah and Chatham County building departments require a signed and sealed geotechnical report for all commercial structures and for residential foundations on lots with documented fill or floodplain soils, per IBC Section 1803.
What does a shallow foundation design package cost for a typical commercial lot?
For a standard commercial lot with two borings, lab testing, and a signed foundation recommendation report, fees range from US$1,680 to US$3,310 depending on the number of footings and whether consolidation testing is required.
How deep should footings be placed to avoid moisture-related movement?
We specify a minimum embedment of 18 inches below finished grade, or 12 inches into undisturbed natural soil, whichever is deeper. In areas with expansive fat clays—common west of I-95—we may increase this to 30 inches and recommend a capillary break of clean sand under the slab.
