MASW & Shear Wave Velocity Testing for Site Classification in Savannah, Georgia

ASCE 7 and the International Building Code require a defensible site class for every new structure. In Savannah, that requirement gets complicated fast. The lowcountry stratigraphy here mixes loose alluvial sands, soft marine clays, and occasional marl layers. Guessing a Site Class D when the profile might be E—or worse, missing a stiff layer that would justify Class C—can inflate foundation costs or leave seismic demands underestimated. An MASW survey resolves this directly. It measures shear wave velocity (Vs) in the upper 30 meters, yielding VS30 without the disturbance and cost of deep borings. Combined with a CPT test in areas where the Pleistocene sands run thick near the Ogeechee, the velocity profile gives structural engineers a defensible basis for design spectral accelerations.

In Savannah's saturated lowcountry soils, an MASW survey replaces guesswork with a measured VS30—often the difference between Foundation Class C and Class E.

Method and coverage

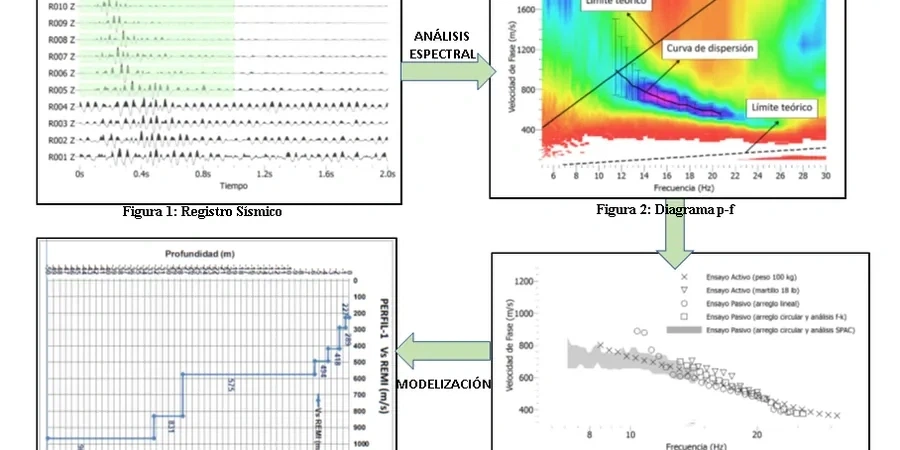

Savannah sits barely 6 meters above sea level, draped across Quaternary and Tertiary sediments that shift character within a single city block. A VS30 value that holds on the sand ridge near Daffin Park may drop sharply toward the marsh edge along the Vernon River. Our field crew uses a 24-channel seismograph with low-frequency geophones, generating surface waves with a controlled sledgehammer source. The inversion process extracts a 1D Vs profile tied to NEHRP site classes. One critical detail: the water table here often sits less than 2 meters deep. Saturated sands near the surface slow P-waves but affect Rayleigh wave dispersion in predictable ways—our processing accounts for that. For sites where the depth to refusal is questionable, we cross-check the dispersion curve against downhole data from existing SPT borings, ensuring the Vs profile isn't a mathematical artifact but a representation of what's actually underground.

MASW & Shear Wave Velocity Testing for Site Classification in Savannah, Georgia

Regional considerations

The most expensive mistake we see in Savannah is a geotechnical report that defaults to Site Class D without any measured Vs. For a mid-rise on Bull Street or a warehouse expansion near the port, that assumption can add 20 to 30 percent to the seismic base shear compared to a verified Class C—or under-design a structure that should be Class E. One developer learned this the hard way when plan check rejected a design based on assumed SPT N-values. They paid for the MASW survey twice: once in re-design fees, once in the actual fieldwork. Other risks include misidentifying a soft clay lens as a velocity inversion artifact, which happens when the dispersion curve isn't checked against boring logs. We run multiple array lengths and use forward modeling to confirm that the inverted profile is geologically plausible. In a city where the Miocene Hawthorn Formation can appear at 25 meters or 80 meters depending on location, plausible means field-verified.

Need a geotechnical assessment?

Reply within 24h.

Email: [email protected]

Standards that apply

ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings, IBC 2024 Chapter 16 and Chapter 18 (soils and foundations), ASTM D4428 / D4428M-14 Standard Test Methods for Crosshole Seismic Testing, NEHRP Recommended Seismic Provisions: Site Classification Procedure, ASTM D5777-18 Standard Guide for Seismic Refraction and Reflection

Complementary services

VS30 Site Classification Survey

Single-array MASW to 30 meters depth for IBC/ASCE 7 site class determination. Includes dispersion curve, 1D Vs profile, and a letter report with VS30 value and NEHRP classification. Ideal for commercial buildings, schools, and any structure requiring plan check submittal.

2D Shear Wave Velocity Cross-Section

Multiple adjacent MASW arrays or a continuous rolling spread to map lateral Vs variation. Used when site geology changes rapidly—common near Savannah's marsh transitions—or for liquefaction assessment where velocity boundaries affect triggering analysis.

Typical parameters

Parameter	Typical value
Measurement standard	ASTM D4428 (crosshole) and surface wave guidelines
Depth of investigation	Typically 30 m; configurable to 50 m with active-passive combined
Site class determination	ASCE 7-22 Chapter 20, NEHRP classes A through F
Geophone frequency	4.5 Hz vertical-component, low-frequency for soft soil penetration
Source type	Accelerated weight drop or sledgehammer on aluminum plate
Data channels	24-channel seismograph, 2 ms sampling
Vs30 reporting	Time-averaged Vs to 30 m, plus layer-by-layer velocity
Typical survey time	1.5–3 hours for a single array, results in 3–5 business days

Q&A

How much does a VS30 MASW survey cost in Savannah?

For a standard single-array MASW survey to 30 meters depth in the Savannah area, budgets typically fall between US$1,430 and US$3,130. The final figure depends on site access, array length requirements, and whether passive-source data is needed for deeper penetration. We provide a fixed-price quote before mobilization.

Can MASW replace soil borings for site classification?

MASW measures shear wave velocity directly—that is the parameter ASCE 7 uses for site class. It does not replace borings for material description or strength testing. The most defensible submittals combine MASW-derived VS30 with at least one boring to confirm stratigraphy, especially in Savannah where the Hawthorn Formation contact depth varies significantly.

What site class is typical for downtown Savannah?

There is no single answer—Savannah's subsurface ranges from stiff Pleistocene sands (often Class C or D) to soft marsh deposits and artificial fill (Class E or F). A measured VS30 is the only reliable method. We have surveyed sites within a half-mile radius where one returned VS30 = 420 m/s (Class C) and another returned 175 m/s (Class D borderline E).
